Documentation / Heritage

Haveli in Chandni Chowk

Measured drawings

2013 · Kucha Pati Ram Bazar, Chandni Chowk, Delhi

A measured-drawing record of a haveli in Kucha Pati Ram Bazar, Chandni Chowk.

Drawings

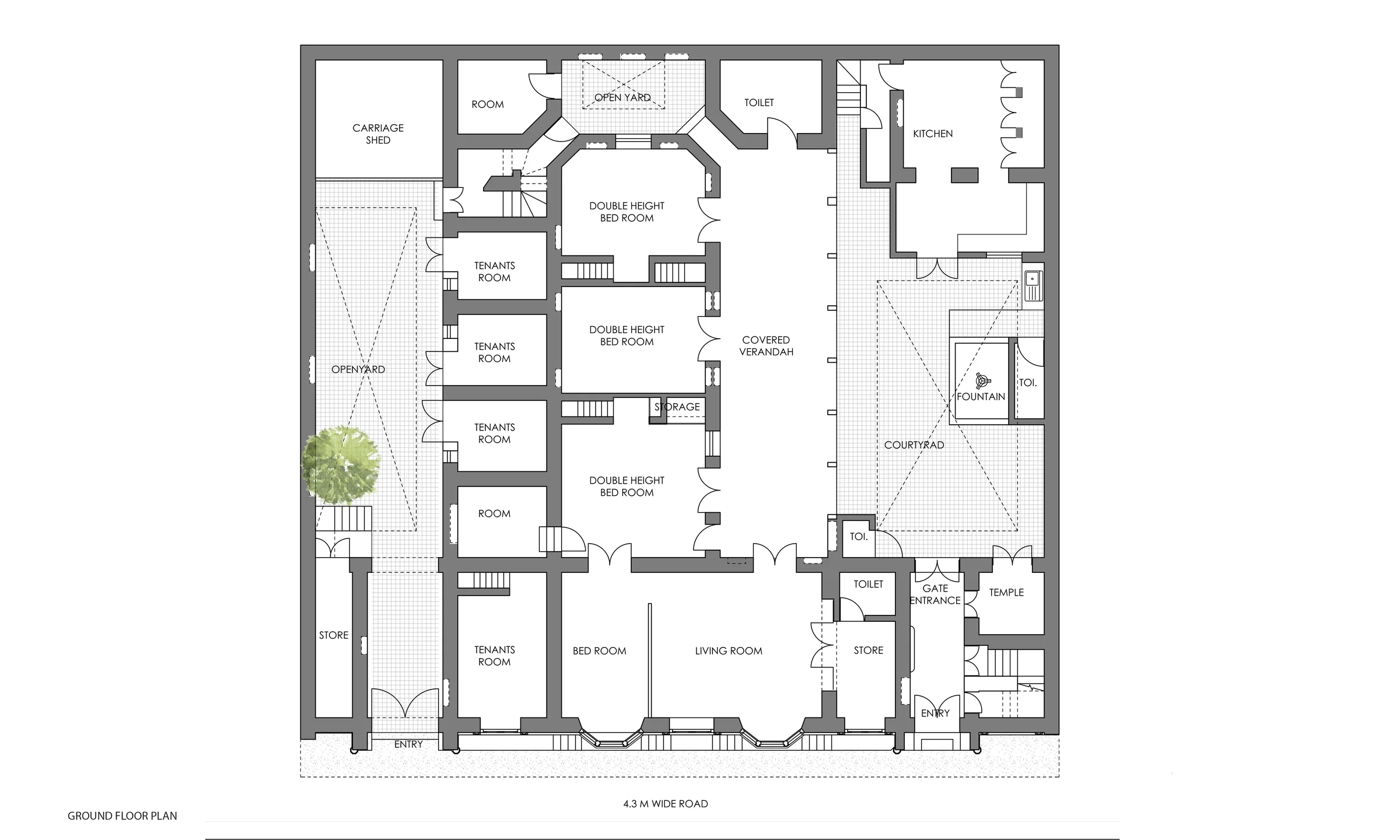

Haveli in Chandni Chowk — Ground floor plan — Ground floor plan

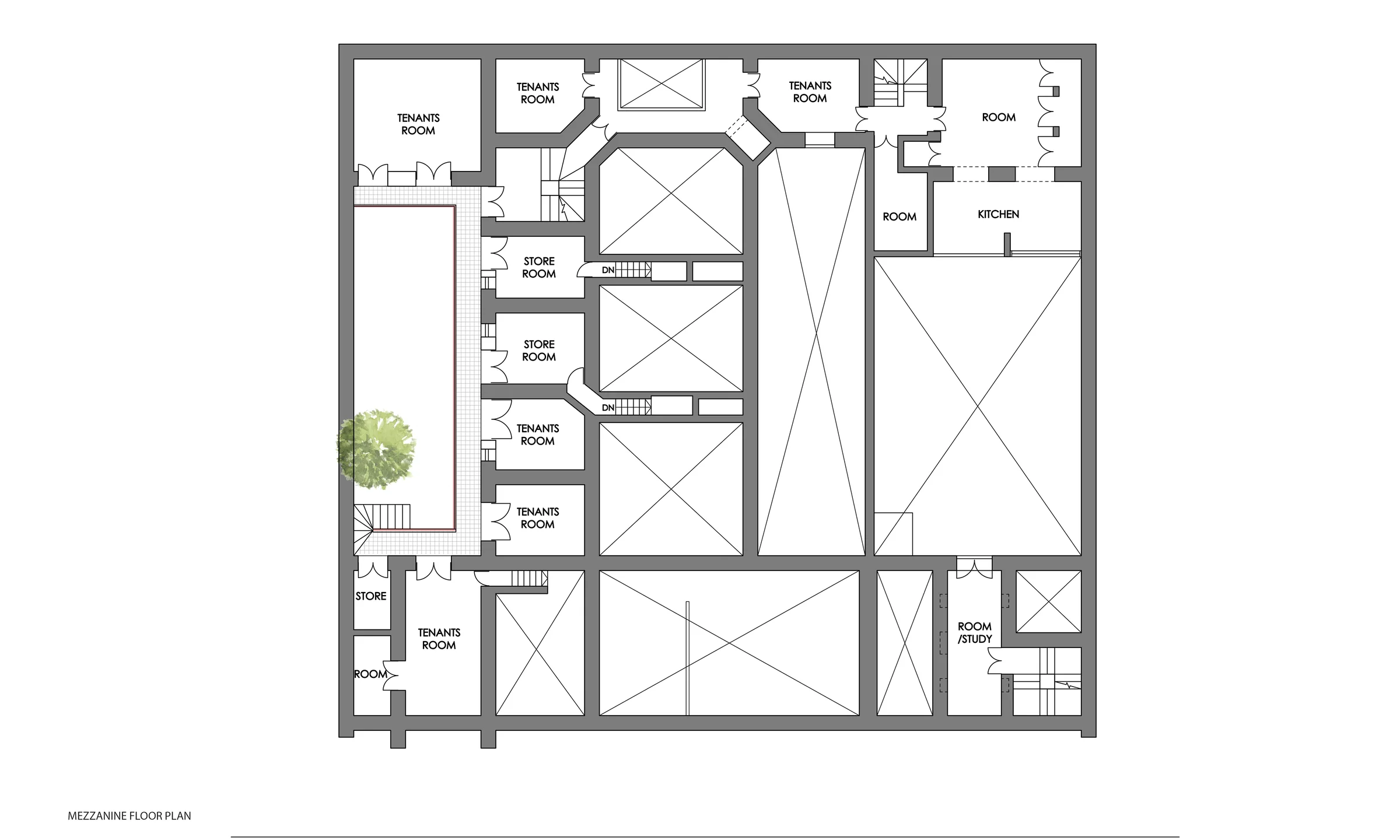

Haveli in Chandni Chowk — Mezzanine floor plan — Mezzanine floor plan

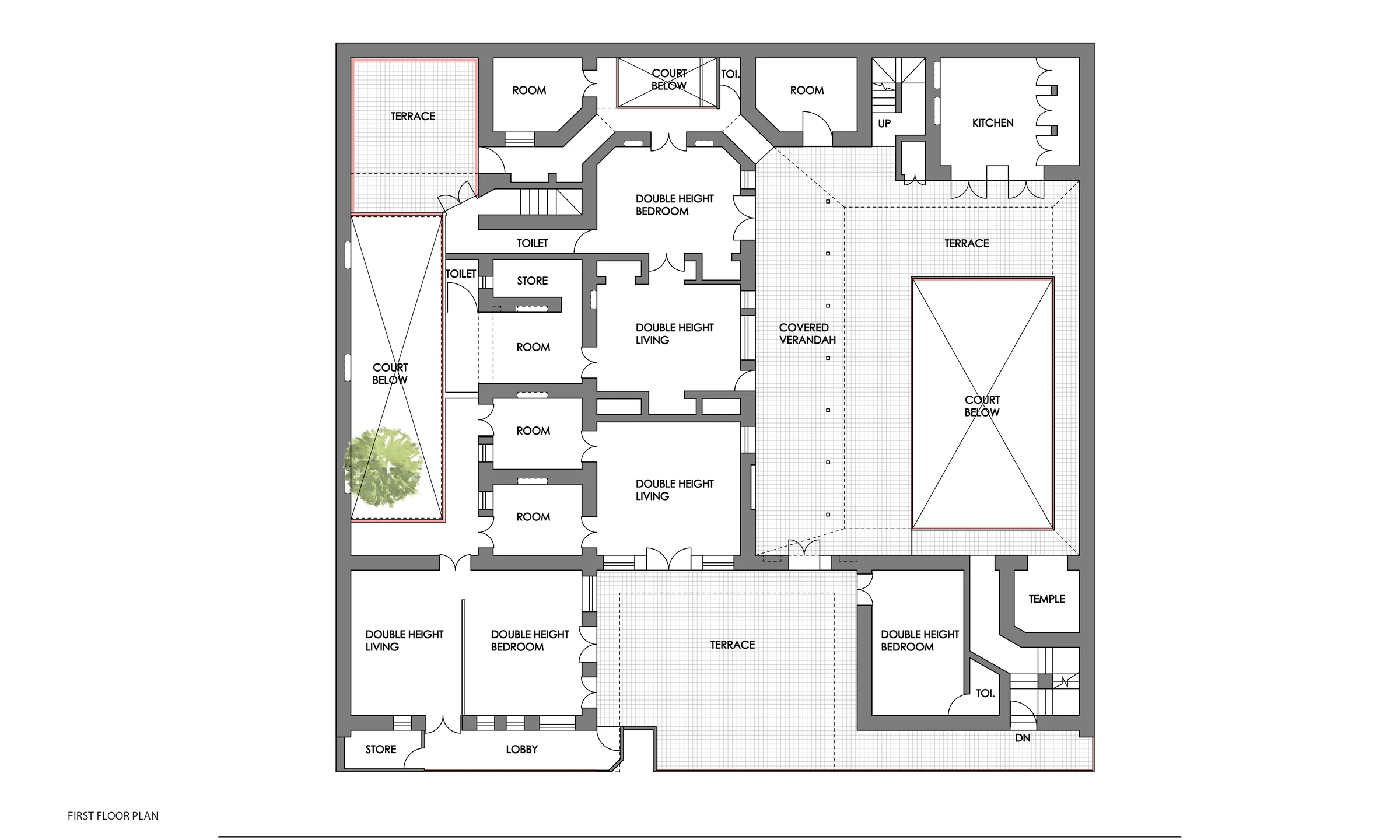

Haveli in Chandni Chowk — First floor plan — First floor plan

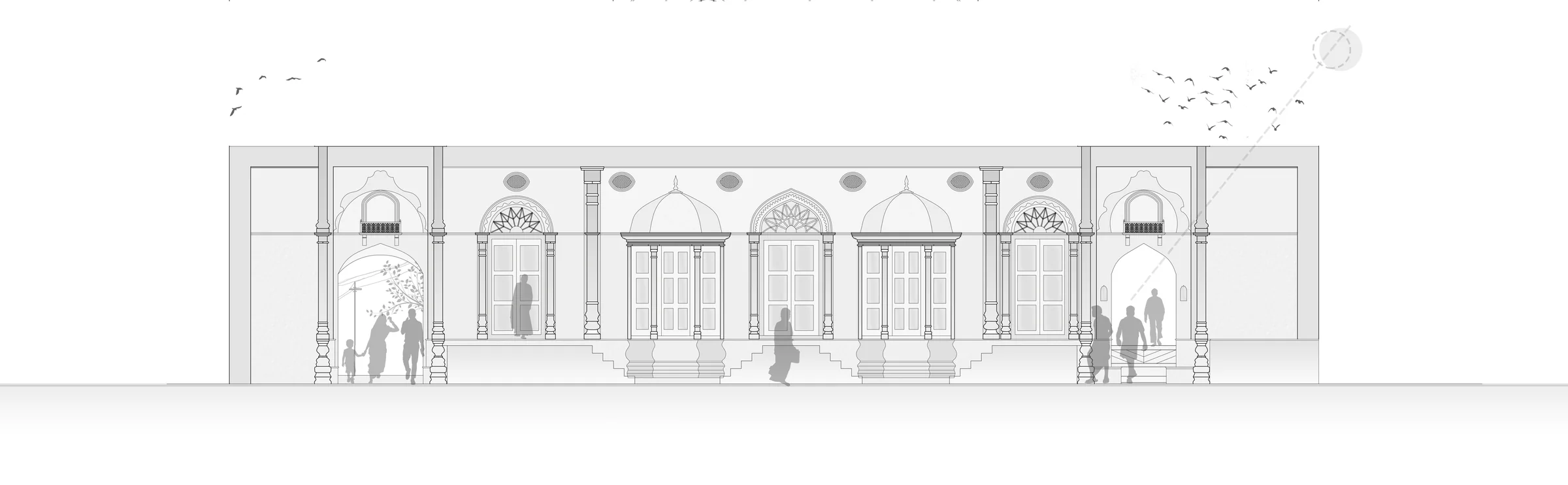

Haveli in Chandni Chowk — Street elevation — Street elevation

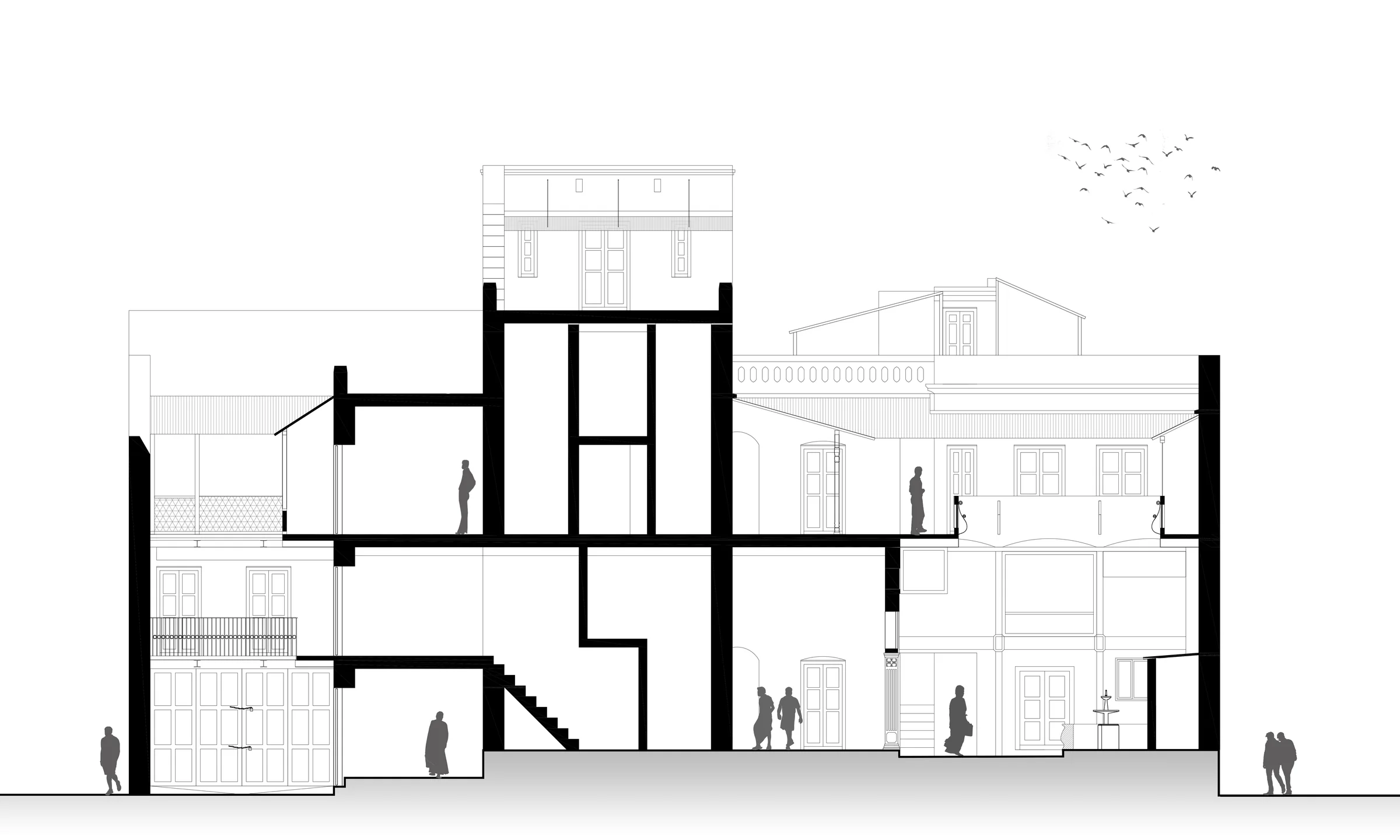

Haveli in Chandni Chowk — Section 1 — Section 1

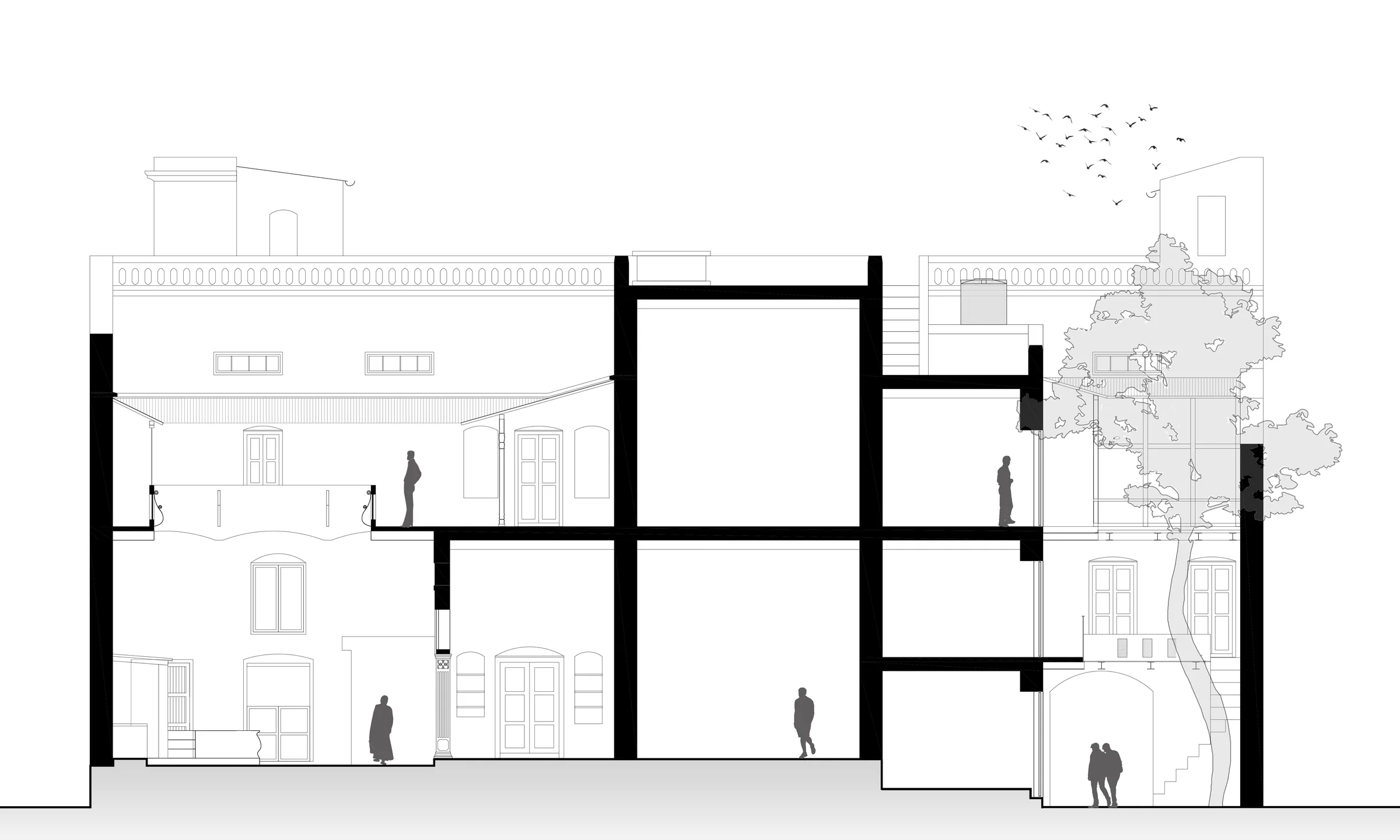

Haveli in Chandni Chowk — Section 2 — Section 2

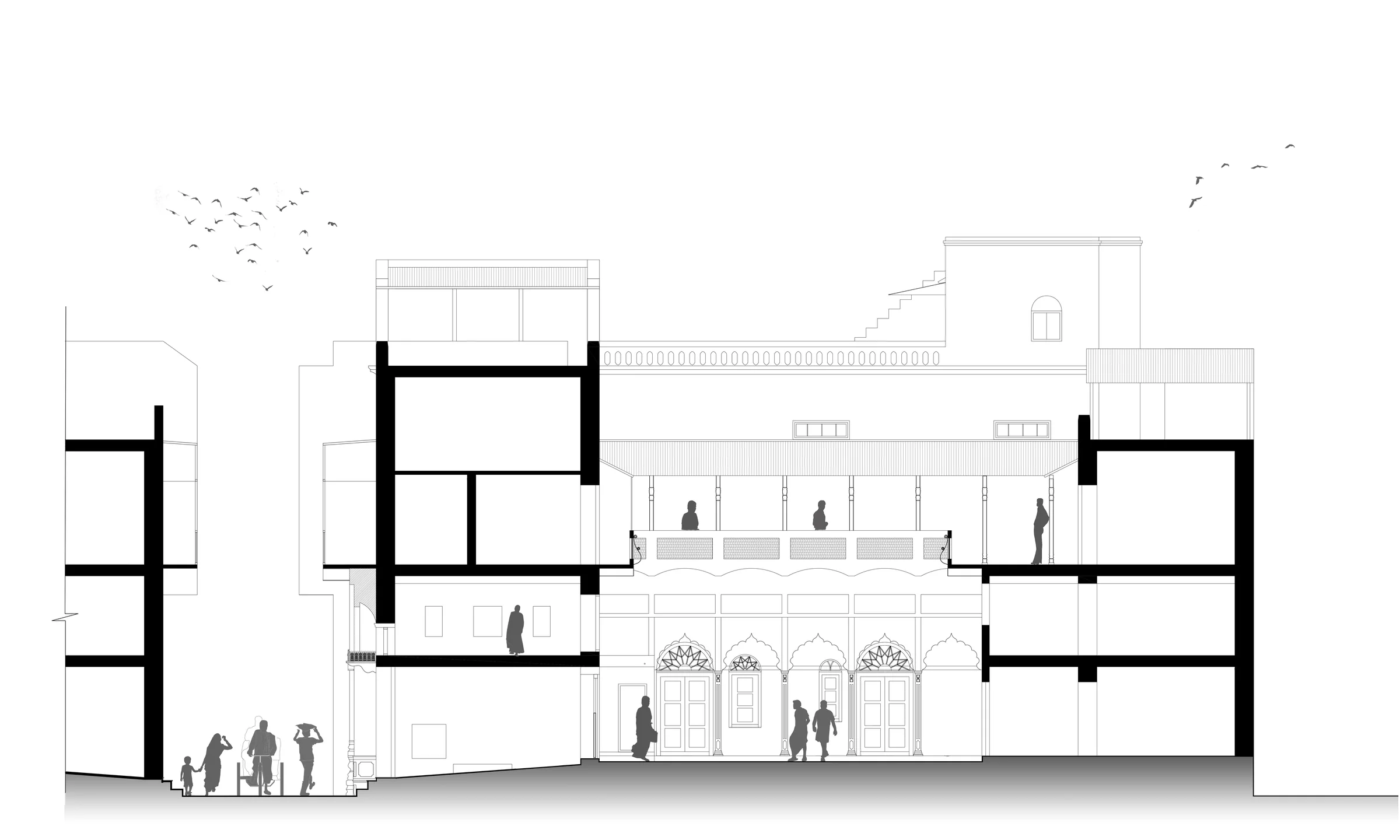

Haveli in Chandni Chowk — Section 7 — Section 7

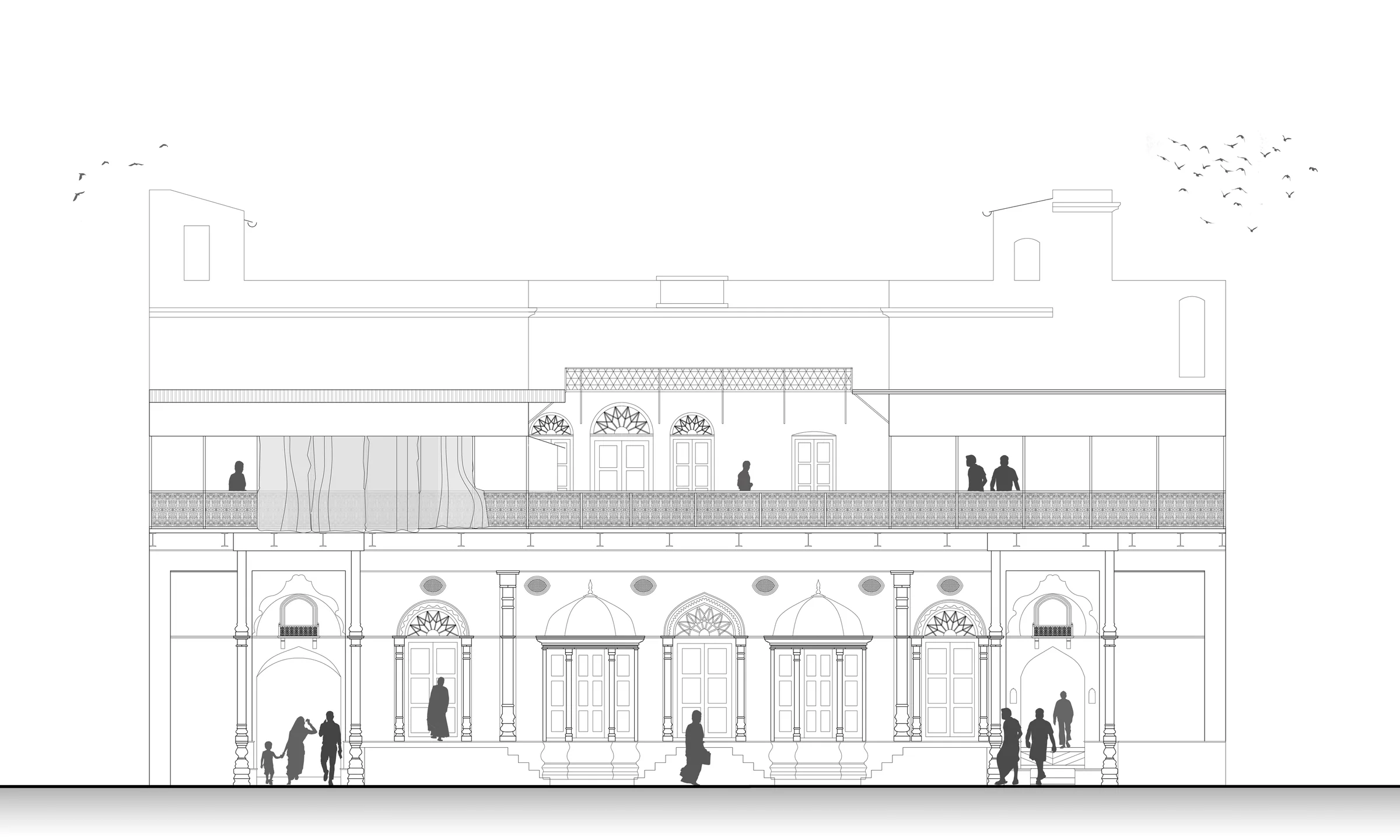

Haveli in Chandni Chowk — Section 8 — Section 8
